Platform screen doors: Above format X and Above format Y
This specification applies specifically to Above Format as a unique design for the doors at metro stations. The only difference from the standard is the height and the design of the asset for the doors. The above format consists 2 asset per doos in total of 6 doors, of 12 must be designed. Please use this specification together with the standard specification for platform screen doors.
Applies to Above Format X
- Aksel Møllers Have
- Copenhagen Central Station
- Enghave Plads
- Frederiksberg Allé
- Frederiksberg M3
- Gammel Strand
- Kgs. Nytorv M3/ M4
- Nordhavn
- Nørrebro
- Nørrebros runddel
- Nuuks Plads
- Poul Henningsens Plads
- Rådhuspladsen
- Skjolds Plads
- Trianglen
- Vibenhus Runddel
- Østerport
Applies to Above format Y
- Amagerbro
- Christianshavn
- Fasanvej
- Frederiksberg M1/M2
- Forum
- Kgs. Nytorv M1/M2
- Københavns Lufthavn (Airport)
- Lergravsparken
- Nørreport
Design guideline
Before your deadline: You must send a sketch/mockup of the Above Format design to rasmus.lundorff@bauermediaoutdoor.com for safety approval by the Metro company. This approval is mandatory before final delivery.
Final artwork deadline: Please see your order specification.
File Format: A single print proof PDF file containing all pages in correct order according to the numbers and track.
Your final delivery must include: All designed panels must be combined in one print-proof PDF, with each panel as a separate page in the correct order. A setup guide showing the complete layout. A mockup of the layout.
Specifications

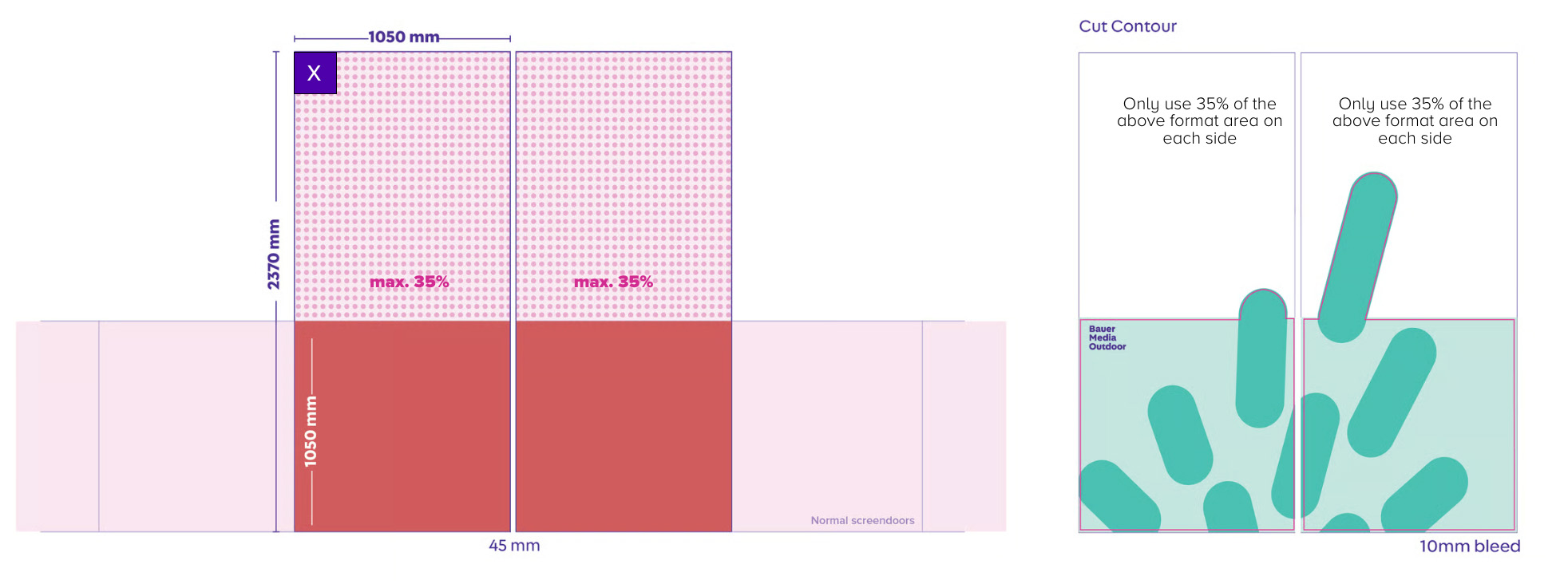

Above Format X: 1050 mm x 2370 mm x 12 assets. Gap: 45 mm

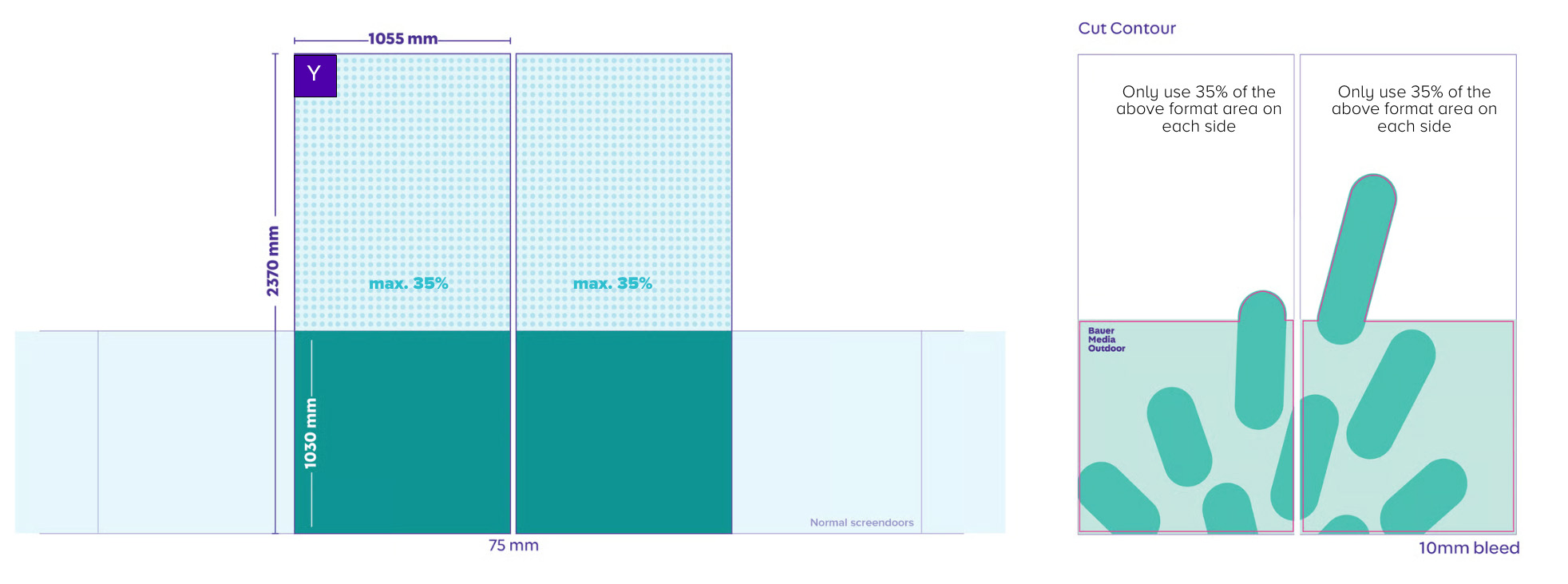

Above Format Y: 1055 mm x 2370 mm x 12 assets. Gap: 75 mm
Text: Vectorized, before making the cut contour.
Base color: Bled to the edges
Visible area: Design is visable from both sides
Layout: 1:1 scale
Min. Resolution: 100 ppi.
Crop marks: 10 mm bleed. Files with an above format that already include a cut contour do not require cut marks. Only files without a cut contour must include cut marks.
Images: Pantone and RGB colours must be converted to CMYK – Coated Fogra39.
Text and logos: Must be placed at least 100 mm from the edge.
Foil: Bauer Media Outdoor prints on white foil. Without bleed, white lines may appear at the edges. Transparent effects and fades cannot be reproduced.
Cut / Spot Color: Files for opening doors must include a cut contour (spot color) on a separate, removable layer. The contour must fully outline the design and be created after all text is outlined. See this guide for more info
