Panel ID

• 60655 (Metro end wall),
• 60715 (Metro Screen doors)
• 60713 & 60714 (Adshels

Format

Please be aware that you need to deliver files for both Metro end wall, Metro Screen doors/all glass at both sides and for Adshel.

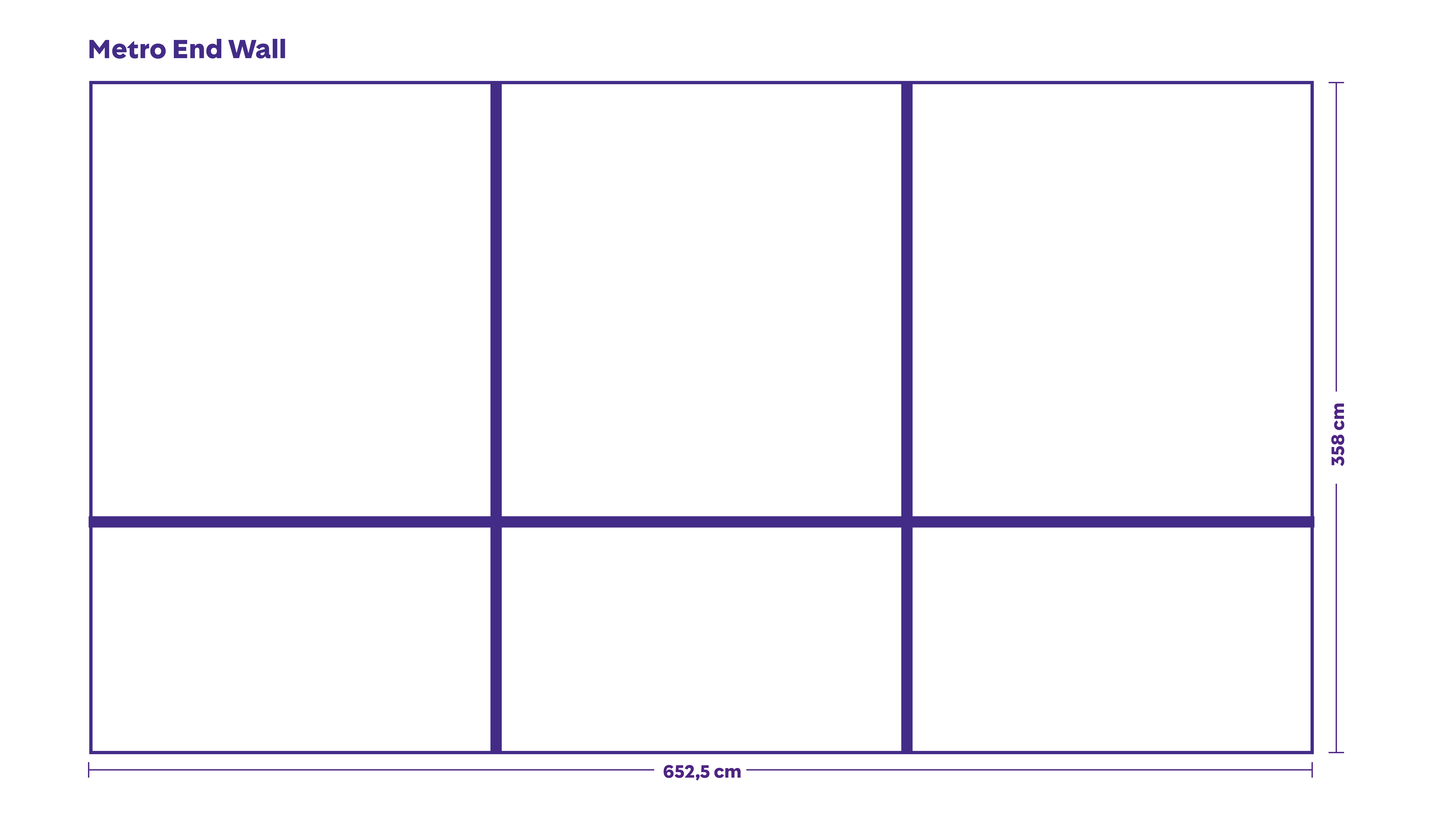

Metro end wall

• H358 x W652,5 cm
• Deliver in format: H358 x W652,5 cm and be aware of the distance between the glass.
• Metro end wall and Metro screen doors/all glass at both sides: Foil on glass surface.

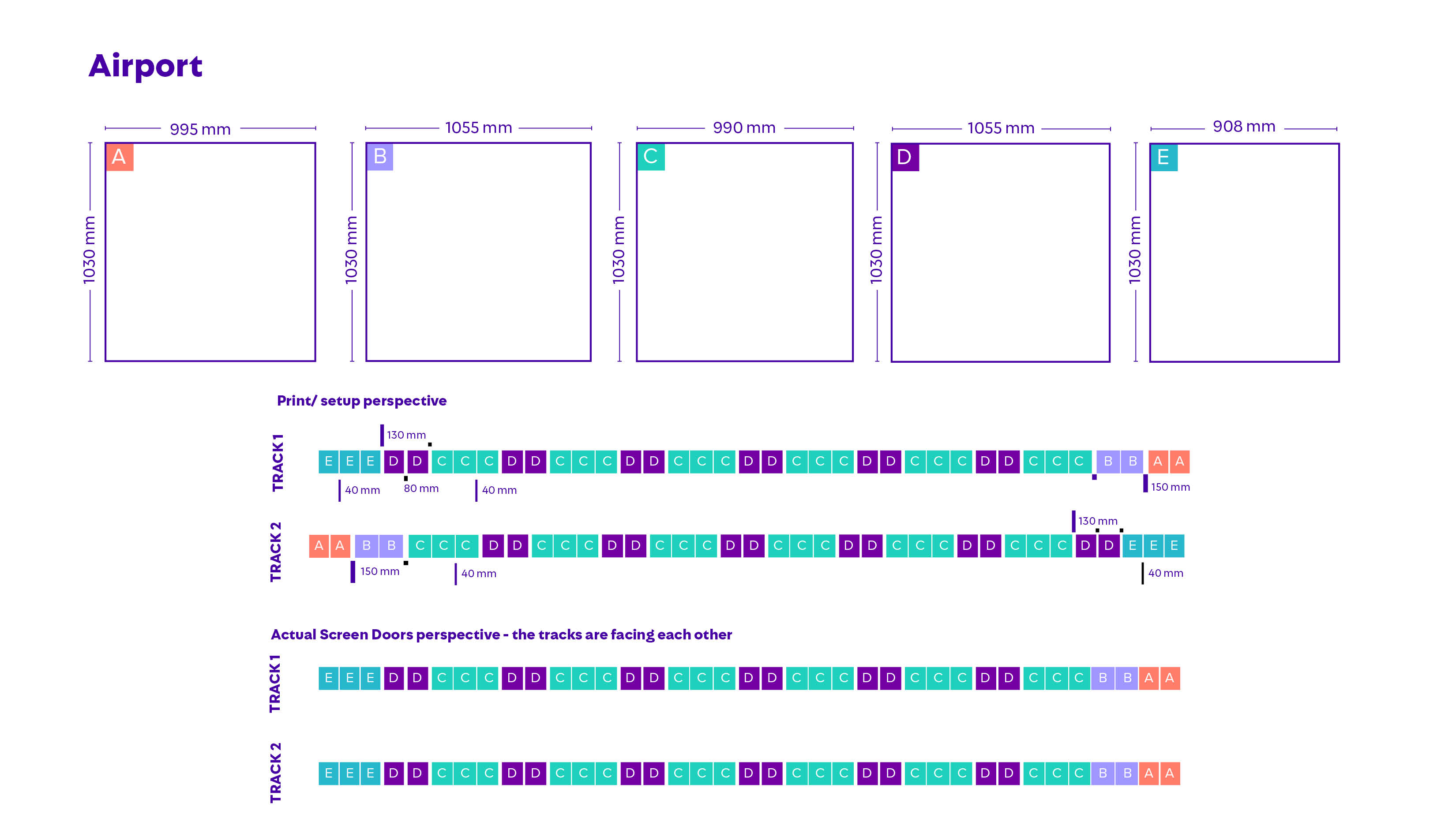

Metro screen doors / all glass at both sides (78 pcs.)\

• A: W: 995  x H: 1030 mm. × 4
• B: W: 1055 x H: 1030 mm. × 4
• C: W: 990 x H: 1030 mm. × 36
• D: W: 1055 x H: 1030 mm. × 24
• E: W: 908 x H: 1030 mm. x 6

Adshel

• H175 x W118,5 cm.
• Visible area: H171 x W116 cm.

Print ready files

General

• File(s) must contain cropmarks.
• Colours: Convert all colours to CMYK – Coated Fogra39.

Platform screen doors (All glass at both sides)

• Deliver two pdf-files with 37 pages in correct order for each track.
• Scale:1:1
• Resolution: 100 ppi
• Bleed: 10 mm.

End Wall

• PDF in a 1:10 scale
• Resolution: 500 ppi
• Bleed: 10mm.

Adshel

• PDF in a 1:1 scale.
• Resolution: min. 150 ppi.
• Bleed: 5 mm.
• Text and images must be placed within the visible area.
• All originals must be marked with the campaign name, week and designation (A, B, C etc.). Place the marking in the space between the print area and the visible area in two positions: horizontally in the top right corner, and vertically in the bottom right corner. Use uppercase letters and make it 1 cm high in full size.

Deadline(s)

At least 20 working days (at 8 am) before the campaign starts, or as stated in the order confirmation.

Delivery notes

Name your files like this:
Order number_customer name_campaign_week(s)_format(s)_design number. For instance: 72445_Pride_Vinterfestivalen_3-4_Adshel_1.

Design number is used if you have more than one design.

Please do not use æ, ø or å in the file name.

‍

‍

‍
